SAVER 9X30 Data Logger

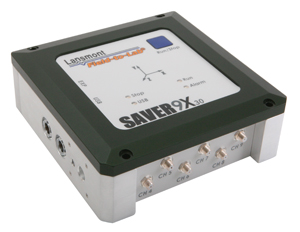

SAVER 9X30 Mounting Orientation

SAVER™ 9X30 shock and vibration field data recorder

The SAVER™ 9X30 is our most capable shock and vibration field data recorder. It can record up to 9 dynamic channels – using its internal triaxial accelerometer as well as 6 external accelerometer inputs. The SAVER™ 9X30 also includes sensors to record temperature, humidity, and atmospheric pressure. The SAVER™ 9X30 includes built-in signal conditioning for all the dynamic channels along with user-defined recording ranges and filters. This self-powered instrument provides 16-bit resolution for full triaxial accelerometer time-history waveform recording with user defined signal pre-trigger settings.

This research grade data logger includes both internal and external acceleration measurement for shock, vibration, as well as temperature & humidity, pressure and options for GPS location. When the application requires research quality data – SAVER™ is the answer.

  • Simultaneously measure input and response dynamics
  • High-speed sampling rates for accurate characterization of shock events
  • Full transport shipping lane characterizations, allowing for complete Field-to-Lab data transformation
  • Atmospheric pressure along with optional GPS integration provides for complete, robust and defendable historical data

The SAVER™ 9X30 is powered with user-replaceable 9V lithium (or alkaline) batteries and will continuously sample the environment for up to 30 days.  It samples continuously and records data to flash memory when user-defined trigger conditions are met. The triggering can be defined based upon the event’s acceleration threshold, and/or a periodic timer interval.

Product Features
  • Full acceleration time-history waveform shock and vibration data logger
  • User-programmable trigger threshold
  • User-defined pre-trigger recording
  • 30-day continuous event recorder
  • LED alarm indicators for user-defined shock, temperature, humidity, and pressure conditions
  • Push button, delayed start or instantaneous activation
  • USB connectivity for communication and instrument power
  • Utilizes SaverXware Software for setup, communication and data analysis
  • Small size and footprint
Product Specification Highlights
  • Envelope Size:  5.0 x 4.9 x 1.7 in. (127 x 124 x 43 mm)
  • Weight:  35 oz. (1 kg)
  • Acceleration Ranges:  5, 10, 20, 50, 100 and 200g (full scale)
  • Accelerometer Type:  Triaxial piezoelectric (internal), six external channels (optional)
  • Sampling Rates:  50, 100, 200, 250, 500, 1000, 2500, 5000, and 10,000 samples per second
  • A/D Conversion:  16-bit
  • Anti-Alias Filter:  4-pole, low-pass Butterworth filter, 10, 20, 25, 50, 100, 200, 250 and 500 Hz. (cut-off frequency)
  • 3-dB Frequency Response:  0.4 Hz. to filter setting
  • Temperature Measurement Range:  -40° to 60°C (-40° to 140°F)
  • Humidity Measurement Range:  5% to 95% RH, non-condensing
  • Atmospheric Pressure Measurement Range:  10 to 1100 mbar
Product Options Highlights
  • Mounting Kits Including Magnets and other Attachment Hardware
  • External Power for Extended Run-Time
  • Data Analysis Services

Complete product details available on downloadable specification sheet.

Magnetic Mount

Magnetic_Mount

External Power Source

Battery

Data Analysis Services

DataAnalysis_web
